ELECTRIC MOTOR DESIGN SOFTWARE

MotorWizard is template-driven motor design software for SOLIDWORKS users. Using its QuickCalculator, in few clicks, you can optimize your machine size and promptly obtain important motor design parameters such as torque, losses, back emf, flux density, efficiency, power, and temperature. It is also equipped with two finite element electromagnetic computational kernels, EMWorks2D and EMS, for advanced and more intricate motor simulation and analysis for both 2D and 3D geometries.


SEE MORE

THE MAGNETIC AND ELECTRIC 2D FIELD SIMULATION SOFTWARE

EMWorks 2D is a software for two-dimensional electromagnetic simulation, which enables you to test and improve your designs in record time. Having an intuitive workflow, EMWorks2D integrates seamlessly into the SOLIDWORKS environment, for a truly effortless and engaging simulation experience. For maximum workflflow effificiency, EMWorks 2D automatically prepares the selected cross-section of a SOLIDWORKS assembly for a planar or axis-symmetrical electromagnetic simulation.
SEE MORE

Application note

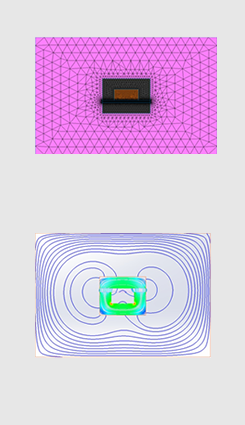

Electro-Magnetic or EM simulation is used to design and study the working of DC linear actuators. It helps to compute the force produced by the work coil, determinate the characteristic of the implemented spring, choose the right materials and optimize the geometric parameters of the actuator.

EMWorks provides both 2D and 3D FEM solutions fully embedded inside SOLIDWORKS. 2D FEM solution is recommended for initial iterative designs because it is quick to perform these types of simulations. A 3D FEM solution is used to confirm the final model parameters before finalizing the design and creating a prototype for field testing.

Figure 3 : Force results versus air gap length
