What is S-Parameters Analysis?

S-parameters analysis in HFWorks is a powerful technique used to characterize and analyze the behavior of RF and microwave components and circuits. HFWorks allows engineers and researchers to calculate complex scattering parameters (S-parameters) that describe how electromagnetic signals interact with multi-port devices. These S-parameters provide valuable insights into signal transmission, reflection, and losses at different frequency points. HFWorks enables users to define port configurations, specify frequency ranges, and extract S-parameter data for in-depth analysis, making it a valuable tool for designing and optimizing high-frequency systems and components.

Key Features and Benefits of S-parameters Analysis

S-parameters analysis is a critical tool in electromagnetic simulation and RF engineering, offering a range of key features and benefits that empower engineers and researchers in various industries. Here are some of the essential aspects:

Comprehensive Characterization:

S-parameters analysis provides a comprehensive characterization of multi-port devices and circuits, offering insights into how signals interact with complex components over a specified frequency range.

Frequency-Dependent Data:

Engineers can obtain frequency-dependent data, allowing them to understand device behavior across a wide spectrum of frequencies. This is crucial for RF and microwave applications, where performance can vary significantly with frequency.

Port Configuration:

 Users can define custom port configurations to model the connections between devices accurately. This flexibility is essential for simulating real-world scenarios and optimizing device performance.

Transmission and Reflection:

S-parameters analysis quantifies signal transmission and reflection at different ports, enabling the evaluation of power transfer efficiency and impedance matching.

Loss Analysis:

Engineers can assess signal losses within components and circuits, helping identify areas for improvement in terms of materials, design, and configuration.

Stability Assessment:

S-parameters analysis can indicate the stability of amplifiers and other active components by examining their gain and phase margins over frequency. This is crucial for designing stable RF systems.

Signal Integrity:

In high-speed digital systems, S-parameters analysis aids in evaluating signal integrity, minimizing crosstalk, and ensuring data reliability in complex PCB layouts.

Design Verification:

S-parameters analysis allows designers to verify their RF and microwave circuit designs before fabrication, reducing the risk of costly errors and design iterations.

Time-Saving:

By providing accurate predictions of device performance, S-parameters analysis saves time and resources in the prototyping and testing phases of product development.

Wide Industry Applicability:

 S-parameters analysis is valuable in various industries, including telecommunications, aerospace, automotive, electronics, and more, making it a versatile tool for diverse applications.

Optimization:

Engineers can use S-parameter analysis results to optimize device performance, minimize signal distortion, and enhance the efficiency of RF and microwave systems.

Troubleshooting:

When issues arise in RF circuits, S-parameters analysis helps identify problems quickly and guide engineers in implementing corrective measures.

Research and Development:

S-parameters analysis supports cutting-edge research and development in emerging technologies, such as 5G wireless communication, radar systems, and satellite communications.

Cost-Efficiency:

By fine-tuning designs and identifying potential issues early in the development process, S-parameters analysis contributes to cost savings and the efficient use of resources.
In summary, S-parameters analysis is a versatile and indispensable tool that empowers engineers and researchers to design, optimize, and troubleshoot RF and microwave components and systems with precision and efficiency. Its wide range of features and benefits makes it a fundamental technique in the field of high-frequency electronics and electromagnetic simulation.

Devices and Equipment Subject to S-parameters Analysis

S-parameters analysis is a fundamental technique for understanding the behavior of high-frequency electronic components and systems. It finds applications in various industries and is essential for designing, optimizing, and troubleshooting devices and equipment that operate in the RF and microwave frequency ranges. Here are some of the prominent devices and equipment subject to S-parameters analysis:

RF Amplifiers:

S-parameters analysis is crucial for characterizing RF amplifiers, including power amplifiers (PAs) and low-noise amplifiers (LNAs). Engineers use S-parameters to evaluate gain, stability, and bandwidth, ensuring that amplifiers meet performance requirements.

Filters:

RF and microwave filters, such as bandpass, low-pass, and high-pass filters, rely on S-parameters analysis for designing optimal filter responses, including passband width, center frequency, and stopband attenuation.

Antennas:

Antennas used in wireless communication systems benefit from S-parameters analysis to assess impedance matching, radiation patterns, and gain characteristics. This ensures efficient signal transmission and reception.

Mixers:

RF mixers play a crucial role in frequency conversion in communication systems. S-parameters analysis helps engineers evaluate the linearity, conversion loss, and isolation of mixers.

Transmission Lines:

S-parameters analysis is essential for modeling and optimizing transmission lines, including microstrip, stripline, and coaxial cables, to minimize signal loss, impedance mismatches, and reflections.

Waveguides:

In microwave systems, waveguides are used to guide and manipulate electromagnetic waves. S-parameters analysis ensures proper mode propagation and helps design waveguides for specific applications.

RF Connectors:

Connectors are critical components in RF systems. Engineers use S-parameters analysis to assess connector performance, including insertion loss and return loss, to maintain signal integrity.

Phase Shifters:

RF phase shifters are used in applications like phased-array antennas. S-parameters analysis helps optimize phase shifter designs to control beam steering and beamforming.

Duplexers and Diplexers:

These devices enable simultaneous transmission and reception in RF systems. S-parameters analysis ensures proper isolation between transmit and receive paths.

Baluns:

Baluns convert between balanced and unbalanced signals in RF circuits. Engineers use S-parameters analysis to assess impedance matching and signal conversion efficiency.

Signal Generators:

RF signal generators produce precise RF signals. S-parameters analysis helps verify signal quality, including frequency accuracy, harmonic content, and output power.

Load-Pull Testing:

Load-pull testing setups use S-parameters analysis to characterize the performance of RF devices, such as transistors and amplifiers, under specific load conditions to optimize device efficiency and linearity.

Mixing and Frequency Conversion Equipment:

Devices like upconverters and downconverters in RF transceivers rely on S-parameters analysis to ensure efficient frequency translation and signal mixing.

Vector Network Analyzers (VNAs):

VNAs are specialized instruments for measuring S-parameters. They are widely used in research and development labs to characterize a broad range of RF and microwave devices.

Satellite Communication Systems:

S-parameters analysis plays a vital role in optimizing the performance of satellite transponders, receivers, and antennas for reliable communication in space applications.

Wireless Communication Systems:

Mobile phones, base stations, and other wireless devices benefit from S-parameters analysis to achieve efficient signal transmission, minimize interference, and enhance network performance.

Radar Systems:

Radar components, such as antennas, waveguides, and RF front-end modules, undergo S-parameters analysis to ensure precise detection and target tracking.

Automotive Radar:

S-parameters analysis is essential for the development of automotive radar systems, enabling accurate object detection and collision avoidance in advanced driver-assistance systems (ADAS).

5G Infrastructure:

The design and optimization of 5G networks and base stations rely on S-parameters analysis to achieve high data rates and low latency in next-generation wireless communication.

Aerospace and Defense Electronics:

S-parameters analysis is critical for radar, electronic warfare, and communication systems used in military and aerospace applications, ensuring robust and reliable performance.

Integrated Circuits (ICs):

RF and microwave ICs, including amplifiers, mixers, and oscillators, undergo S-parameters analysis to verify their functionality and compliance with specifications.

Optoelectronic Devices:

S-parameters analysis extends to optoelectronic components like optical modulators and detectors, aiding in the design of high-speed optical communication systems.

Phased-Array Antennas:

Phased-array antennas used in radar, communications, and satellite systems rely on S-parameters analysis for beamforming, beam scanning, and sidelobe suppression.

Frequency Synthesizers:

S-parameters analysis helps design and optimize frequency synthesizers, ensuring stable and accurate signal generation in RF and microwave applications.

Dielectric Resonator Antennas (DRAs):

DRAs are used in high-frequency wireless systems. S-parameters analysis aids in designing DRAs with specific resonant frequencies and radiation patterns.

Microwave Filters:

Microwave filters, such as cavity filters and microstrip filters, undergo S-parameters analysis to achieve precise frequency responses and rejection bands.

Isolators and Circulators:

These passive components are crucial for controlling signal flow and reducing reflections. S-parameters analysis ensures optimal isolation and insertion loss.

Directional Couplers:

Directional couplers are used for power monitoring and signal sampling. S-parameters analysis helps design couplers with accurate coupling ratios.

RF Front-End Modules (RF FEMs):

RF FEMs in wireless devices benefit from S-parameters analysis for optimizing gain, linearity, and noise figure.

Coaxial Switches:

Coaxial switches are used to route RF signals. S-parameters analysis ensures minimal insertion loss and excellent isolation between ports.

RF Filters:

Beyond microwave filters, S-parameters analysis is applied to various RF filters, including SAW (Surface Acoustic Wave) filters and BAW (Bulk Acoustic Wave) filters.

RF MEMS (Micro-Electro-Mechanical Systems):

RF MEMS devices, such as switches and varactors, use S-parameters analysis for performance characterization and optimization.

Coherent Optical Receivers:

In optical communication systems, coherent optical receivers employ S-parameters analysis to ensure precise phase and amplitude detection.

Synthetic Aperture Radar (SAR):

SAR systems rely on S-parameters analysis for antenna design, beamforming, and image reconstruction in remote sensing applications.

RF Test Fixtures:

Test fixtures and calibration kits used in RF measurement setups undergo S-parameters analysis to minimize measurement uncertainties and ensure accurate results.

Phased-Array Radar Systems:

Phased-array radar systems for weather monitoring and defense applications utilize S-parameters analysis for beam steering and target tracking.

RFID (Radio-Frequency Identification) Systems:

S-parameters analysis helps optimize RFID tag and reader designs for efficient communication and range extension.
In summary, S-parameters analysis is a versatile and indispensable tool for engineers and researchers working with RF and microwave devices and systems across a wide range of applications. Its ability to provide valuable insights into signal behavior, impedance matching, and performance characteristics makes it an integral part of modern high-frequency electronics and electromagnetic simulation.



Output of S-parameters Analysis

The output of S-parameters (Scattering Parameters) analysis typically includes a variety of data and results that characterize the behavior of high-frequency devices and systems. These results are essential for understanding how a device or component responds to different frequencies and can aid in design, analysis, and optimization. Here are some common outputs obtained from S-parameters analysis:

Generalized S-Parameters Matrix:

This matrix contains the complex reflection and transmission coefficients for all ports of the device at various frequencies. It provides a comprehensive view of signal interactions between ports.

Insertion Loss:

This parameter represents the power loss when a signal is transmitted from one port to another through the device. It helps assess the efficiency of signal transfer.

Return Loss:

Return loss measures the amount of reflected power at a port due to impedance mismatches. It indicates how well a device or component is matched to its load.

Re-normalized S-Parameters Matrix:

This matrix is obtained by removing the effects of mismatched impedances, providing a clearer view of the device's intrinsic performance.

Unique Impedance Matrix:

This matrix characterizes the input and output impedances at each port, allowing for impedance matching and network analysis.

Unique Admittance Matrix:

Similar to the impedance matrix, this matrix characterizes the admittance (inverse of impedance) at each port, providing insights into how the device interacts with external circuits.

VSWR (Voltage Standing Wave Ratio):

VSWR quantifies the degree of impedance matching and indicates the level of signal reflection. A lower VSWR value suggests better matching.

Propagation Parameters at Each Port:

These parameters include phase constant, attenuation constant, and characteristic impedance, which describe how signals propagate through the device.

Impedances at Each Port:

Impedance data is provided for each port, aiding in impedance matching and network design.

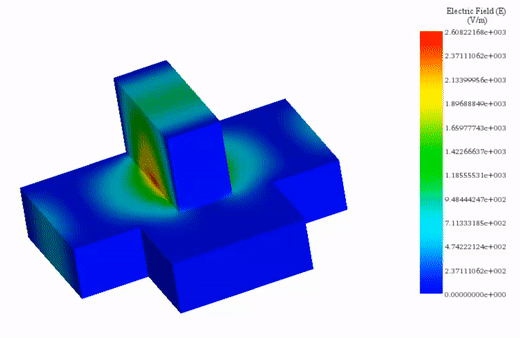

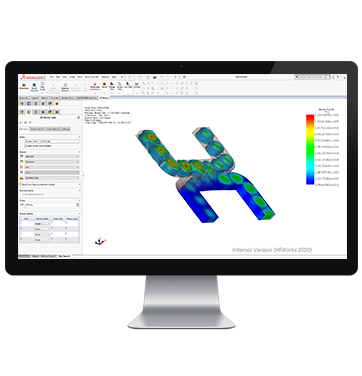

Electric Field Distribution:

Visualization of electric field distributions within the device or component, helping to identify areas of high electric field concentration.

Magnetic Field Distribution:

Visualization of magnetic field distributions is crucial for understanding the behavior of magnetic materials and inductors.

Specific Absorption Rate Distribution:

Relevant in biomedical applications and wireless communication devices, this parameter quantifies the rate at which electromagnetic energy is absorbed by biological tissues.
These outputs are crucial for characterizing and optimizing the performance of high-frequency components such as antennas, amplifiers, filters, and transmission lines. Engineers and researchers use these results to ensure proper device operation, minimize signal losses, and design circuits that meet specific performance requirements.
