Permanent magnets are at the heart of many modern technologies. From electric vehicles and renewable energy systems to consumer electronics and medical equipment, they enable efficient, compact, and reliable designs. Their ability to generate stable magnetic fields without external excitation makes them indispensable. However, designing with permanent magnets presents unique engineering and economic challenges, many of which are interrelated.
This article takes a practical look at the real-world issues engineers face and how electromagnetic simulation helps them design better, faster, and more efficiently.
Why Permanent Magnets Matter and Their Applications
Permanent magnets produce magnetic fields without any external power supply. This unique property makes them ideal for applications where compactness, simplicity, and high energy efficiency are critical.
Electric Motors and Generators
Permanent magnets are the main piece to brushless DC motors (BLDC) and synchronous generators. They improve performance by eliminating the need for external excitation coils and reducing electrical losses. In electric vehicles and wind turbines, this translates into higher energy efficiency and reduced weight—two major priorities.
Waste Separation and Recycling
Magnetic separators like drum and overbelt magnets are widely used in waste processing to extract conductive materials. Their strong magnetic fields enable effective metal recovery from mixed waste streams, contributing to more efficient and sustainable recycling practices.
Home Appliances
Appliances such as washing machines, refrigerators, vacuum cleaners, and speakers use permanent magnets for motion, sound generation, and sealing mechanisms. Their compact size and reliability enhance both performance and product lifespan.
Toys and Consumer Electronics
Magnets add functionality and interactivity in toys and small electronic devices. In smartphones, for example, they’re used in speakers, vibration motors, and magnetic sensors. Their reliability and compact power make them ideal for miniaturized designs.
Engineering Challenges in Magnet-Based Systems
Despite their advantages, magnets introduce a set of technical challenges that must be carefully addressed during the design process.

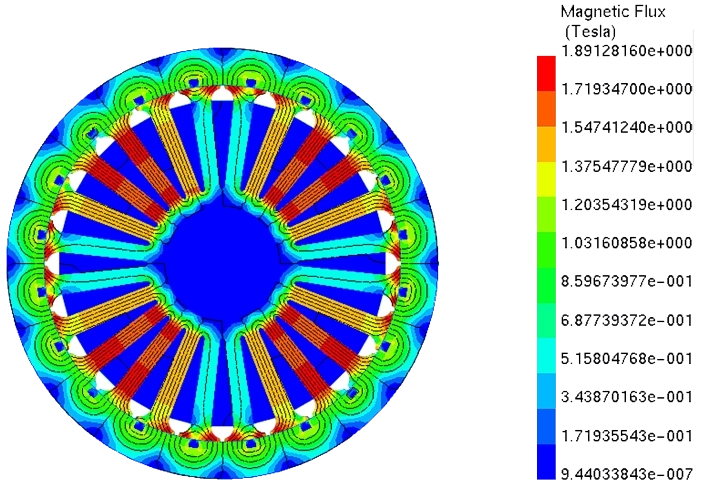

Magnetic Saturation and Field Distortion
All magnetic materials have a saturation point—beyond which they cannot carry additional flux. Oversized or improperly placed magnets may cause components like stator cores to saturate, resulting in field distortion, heat generation, and reduced efficiency. This can degrade system reliability and performance if not properly managed.
.webp)
Temperature Sensitivity
Many high-performance magnets, especially neodymium-based (NdFeB), suffer from significant drops in strength at elevated temperatures. Applications such as EV motors or wind turbines frequently expose magnets to fluctuating thermal conditions. Without accurate prediction and compensation, thermal demagnetization can shorten system lifespan.
Size, Weight, and Cost Constraints
Stronger magnets allow for more compact systems, which is essential in space- or weight-constrained applications like aerospace and automotive. However, stronger magnets often come at a higher price. Engineers must strike a balance between performance, space, and cost—often making tradeoffs across all three dimensions.
Material Availability and Tradeoffs
The performance of permanent magnets largely depends on the materials used to manufacture them, such as rare-earth elements like neodymium or samarium-cobalt. These high-performance materials are often expensive and can be difficult to source. Fluctuations in material availability and pricing can significantly impact on the overall cost and feasibility of magnet-based systems.
NdFeB offers the highest energy density but is sensitive to temperature, while SmCo provides better thermal stability and corrosion resistance, Ferrite is cost-effective but weaker, and Alnico has excellent temperature stability but lower coercivity.
How Electromagnetic Simulation Helps Engineers
Electromagnetic simulation allows engineers to understand and optimize magnetic behavior under different real-world conditions—without needing to build costly and time-consuming physical prototypes.
Optimize Magnetic Field Distribution
Simulation makes it possible to map magnetic flux lines and identify potential saturation zones. This enables early adjustments to component geometry and magnet placement.
Predict Thermal Behavior
Simulation tools that integrate electromagnetic and thermal analysis provide insight into how temperature affects magnetic performance. This is essential in high-load environments such as traction motors and medical equipment.

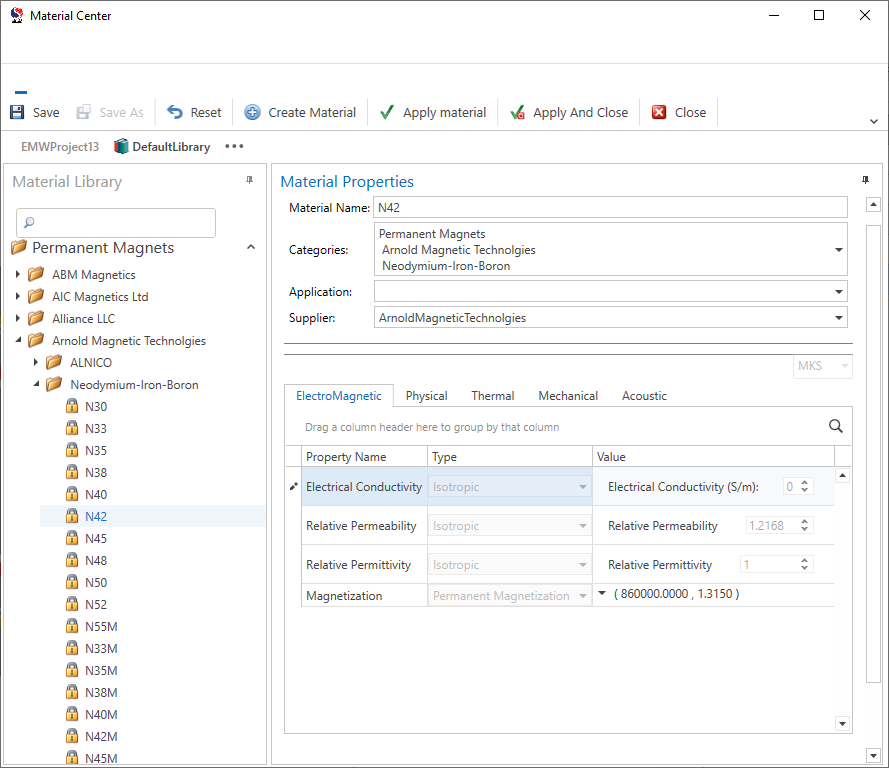

Explore Material Alternatives
Engineers can simulate the performance of different magnet types to determine whether more affordable or thermally stable alternatives can meet the required specifications.
Shorten Development Cycles
By simulating different design variants before production, engineers can significantly reduce the number of physical prototypes needed. This accelerates time-to-market and lowers development costs.
Reduce Magnetic Interference
Multi-magnet systems often face issues related to unwanted interactions and electromagnetic noise. Simulation enables engineers to study these effects in a virtual environment and apply corrective design strategies.
Simulation in Practice: How EMWORKS Supports Permanent Magnet Design
Electromagnetic simulation isn’t just an added feature—it’s essential for any engineer working with magnets in critical systems. Whether managing thermal drift, avoiding saturation, or balancing size with cost, the ability to simulate these effects beforehand is a clear advantage.
EMWORKS offers simulation tools that allow engineers to manage all aspects of permanent magnet behavior—from magnetic field strength and material selection to thermal impacts and magnetic interference. It supports engineers in transitioning smoothly from concept to validation in a single environment.
Engineers who need a platform to design, simulate, and innovate will find that EMWORKS provides a seamless solution built for real-world challenges.
.webp)
Final Thoughts
Permanent magnets are key to next-generation technologies, but working with them comes with technical complexity. Design choices affect cost, performance, size, and reliability—often in competing directions.
Simulation enables engineers to navigate these tradeoffs with clarity and speed. By testing ideas virtually and predicting performance across scenarios, engineers can reduce risk, cut costs, and innovate more confidently.
As industries demand more efficient, compact, and thermally stable systems, the role of simulation will only grow. Those equipped with the right tools, especially ones that simplify electromagnetic analysis, will be better positioned to lead.
