2D Simulation of a magnetic levitation system used in semi-high-speed maglev train

In this application note, a proposed electromagnetic levitation system model in a semi-high-speed maglev train is analyzed using EMWorks2D [1]. EMWorks2D is a 2D electromagnetic simulation software provided by EMWorks.

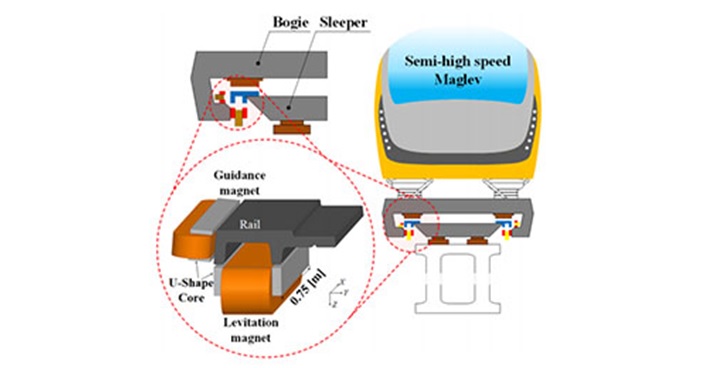

The proposed model consists of a Type F rail, levitation electromagnets, and guidance electromagnets [1]. The levitation magnets are used to lift off the vehicle from the ground to a specific position in the free space, while the guidance magnets are used to center the vehicle above the rail and eliminate any lateral displacement. The ferromagnetic components are made of steel 1010, while the windings are made of copper.  More Details
