APPLICATION NOTE

LOSS ANALYSIS OF A DOUBLE-SIDED PERMANENT MAGNET (DSPM) RADIAL-FLUX EDDY CURRENT COUPLER

Eddy current coupler is a non-contact coupling system that works on the Eddy current principle, where a circular electrical current is induced within a conductor by a nearby varying magnetic field. This induced current creates a magnetic field that opposes the magnetic field source (created by winding or PM). Those forces ensure torque transmission between two rotating mechanical systems without any concrete contact.

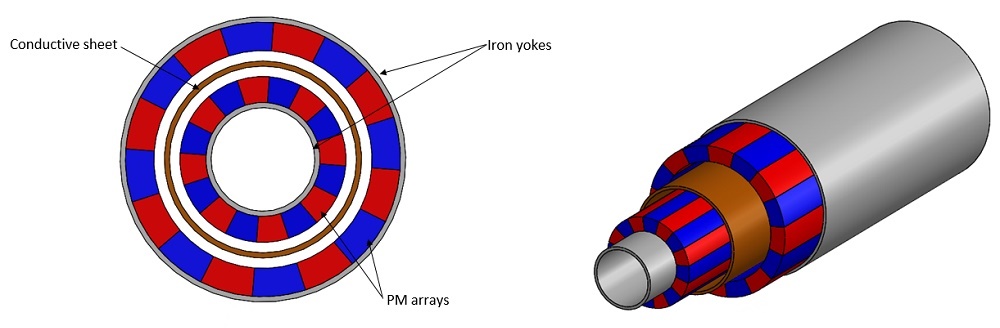

The current study is investigating the radial type of Eddy current coupler for a Double-Sided Permanent Magnet (DSPM) configuration. Figures 1a) and 1b) show respectively real and 3D CAD SOLIDWORKS models of the studied eddy current coupler.


(a)

(b)

Figure 1 - Eddy current coupler, a) real model, b) 3D CAD model

EMS transient magnetic solver was coupled to SOLIDWORKS Motion and this simulation was used to predict the torque and the eddy losses quantities when an angular speed of 800 rpm is applied to the PM rotors for a simulation time of 75 ms. The transient magnetic simulation with eddy current analysis is shown next.
Figure 2 illustrates the magnetic flux in the studied coupler.

Magnetic flux density

Figure 2 - Magnetic flux density

The first 2D plot (Figure 3a) shows the constant angular velocity of the PM rotors which has a value of 4800 Deg/s. Eddy currents generated in the metallic tube will create an electromagnetic torque acting in the reverse direction of the moving PM. The next 2D plot (Figure 3b) contains the induced torque results versus time which has an average value around 58.5E-3 N.m.

angular velocity of the rotor
(a)
torque results of the conductor
(b)

Figure 3 - Electromechanical results, a) angular velocity of the rotor, b) torque results of the conductor
